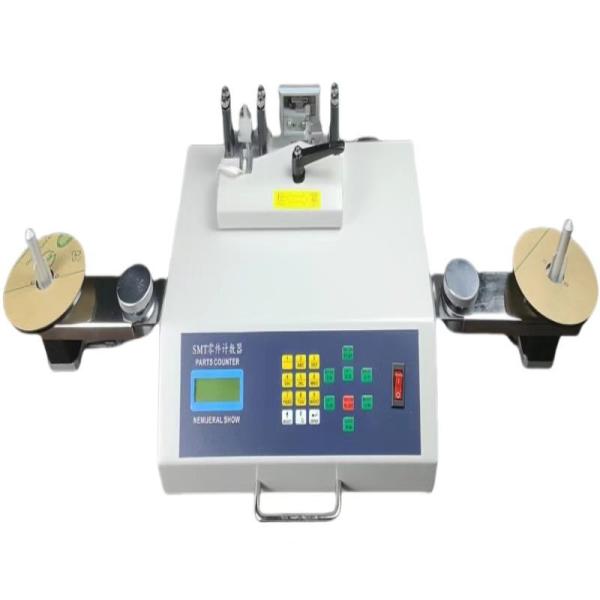

Function information:
1,Leak detection SMD/SMT parts counter,easy to operation,small in size and convenient to use.

2,It can be count both by forward and reverse,which is very accurate and has zero error,especially designed for SMD/SMT parts..
3,Within the function of leak detection,when there is a missing parts,this machine will be stoped and the buzzer will alert the operator to record the amount of missing parts.

4,You can set a number you need, when the counting finished the machine will be stoped, which is very convenience for you to count,issue and receive the SMD/SMT spare parts.

5,It could be equip the scanning and bar code printer,convenience for you to operate.

6,It is small and lightweight,convenient to carry, designed especally for SMD factory which use to count the SMD/SMT parts.

Typical specifications:

1.Power source: AC220V/110V,50Hz/60Hz

2.Count speed: 5000PCS /15 second

3.Rated power: 30W

4.Count range: From -99999 to 99999pcs

5.Machine measurement: L774*W350*H184mm

6.Weight: 11kg

7.Applicative tape diameter:Applicable to all kinds of SMD/SMT tape

8.Pctch: 2.4.8.12.16.20.24.28.32.36.40.44.48.52.56mm

9.Applicative tape width: 8,12,16,24,32,44,56mm

10.Packaging detail:Carton and foam plastics .

Speed adjustment: Press the“TIME/LOSS”button to chang the speed:H(high),M(middle),L(low).

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
