What is SMT?
Surface mount technology
It is the technology of printing electronic components on a circuit board

• Semi-auto SMT Stencil Printer

1. Control System

Microcomputer Control

Touch Screen Display

Menu User Interface

2. Touch Screen Interface

Time Display Function

Automatic Counting Function of Printing Times

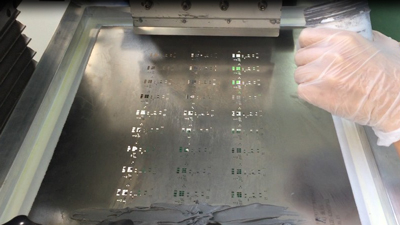

3. Stencil

Similar to full automatic printing machine , the stencil will rise slowly within 2 seconds to demould then quickly rise to leave the PCB, which avoids the wire drawing occurring in the demould and saves time and improves production efficiency.

• Reflow Oven

• Model	L8	L10
  Dimension (L*W*H)mm	5000x1250x1490	5800x1250x1490
  Weight	Approx. 1600KG	Approx. 1800KG
  Number Of Heating Zones	Up8/Bottom8	Up10/Bottom10
  Length Of Heating Zones	3121mm	3891mm
  Rail Width Adjustment	M(option:A)
  Exhaust Volume	10M3/minx2 Exhausts
  Control System	PLC+Computer
  Temperature Control Method	PID + SSR

For SMT Factory Setup, We Can Do for You:

1. We Provide Full SMT Solution for You

2. We Provide Core Technology With Our Equipments

3. We Provide The Most Professional Tech Service

4. We Have Wealthy Experience on SMT Factory Setup

5. We Can Solve Any Question About SMT

Details:

Simple process flow:

Loader → Printing Machine → Pick-and-Place Machine → Reflow Oven → Inspection Machine → Repair

Complex process flow:

Loader → Laser Marking Machine → Cleaning Machine → Printing Machine → Solder Paste Detection Machine → Pick-and-Place Machine → Reflow Oven → Optical Inspection Machine → Unloader

YUSH Electronic Technology Co.,Ltd was founded in 2004,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

YUSH Electronic Technology Co.,Ltd  was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
